AC 70V-500V Mini Digital Voltmeter 2-Wire LED Display Panel Voltage Test Meter (GREEN 1 )

Parameter:

Product Name: Mini Digital Voltmeter

Measuring Range: AC 70V-500V

Max Input: AC 500V

Allowable Error: +/- 1%

Input Impedance: More than 1M ohms

Working Current: Blue, less than 17mA

Refresh Speed: About 300mS each time

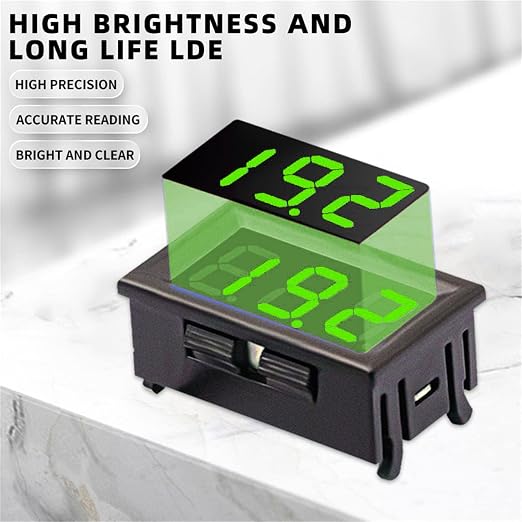

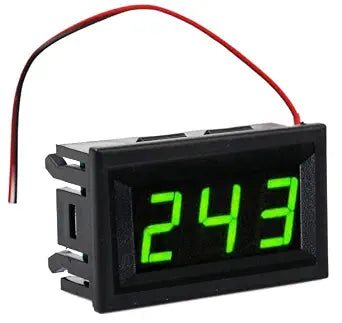

Display Mode: Three-digit 0.56" LED digital tube

Display Color:RED YELLOW BLUE GREEN

Lead length: 20 cm / 7.87 in

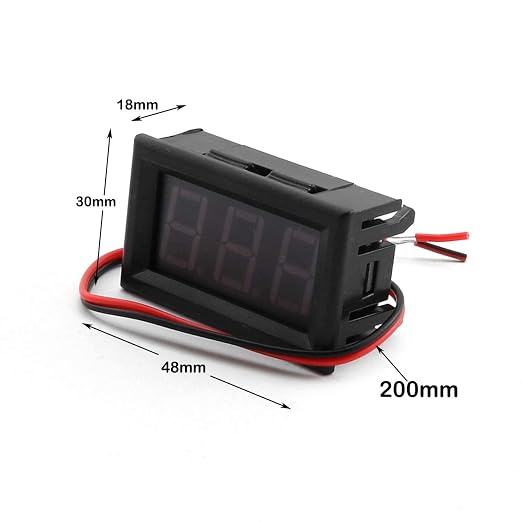

Size: 4.8x2.9x2.2cm / 1.89"x1.17"x0.87" (LxWxT)

Cut-Hole Size: 4.6x2.7cm /1.81"x1.06"

Net Weight: 18g

Operating Temperature: -20 to 65 Degree Celsius

Feature: High precision, high reliability, for high-end applications.

Function: With reverse connection protection

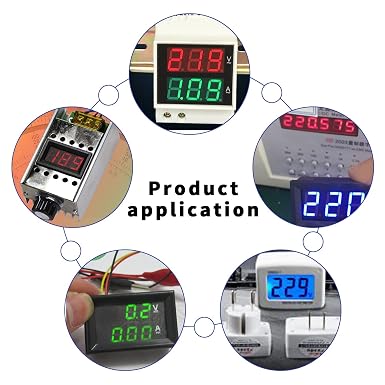

Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Tips:

Input voltage higher than 500V may be permanently damaged!
